New Plastic Molding Part Development: Process, Timing & Shipment | Topworks
Topworks Plastic Mold · Huangyan, China sales@plasticmoulds.net  ·  +86 159 6865 2523
Complete Development Guide

New Plastic Molding Part
Development Guide

From CAD concept to shipped products — a 10-step framework for injection molding success, with real-world timelines and expert tips.

10Process Steps
5–6 wksTooling Lead Time
T1First Sample: 1–2 wks
2–5 daysAir Freight Sample
⚙️

Injection molding enables mass production of precision plastic parts once the initial molds are made. Successfully navigating this process requires understanding each phase — from locked 3D files to first-article validation and full production runs. This guide breaks it into 10 logical stages for predictable, high-quality outcomes.

01
📐

Finalize Part Designs

The foundation of every injection molding project is a fully locked 3D CAD model. Before investing in steel tooling, ensure all critical dimensions are confirmed and DFM (Design for Manufacturing) compliance has been reviewed by experienced engineers. Mold flow simulation at this stage reveals moldability issues when changes are still inexpensive.

Focus initial design efforts on overall form factor and function — refine aesthetics after manufacturing constraints are understood. Outer contours and critical structural features should be prioritized first.

💡Lock 3D models before tooling starts. Even minor design changes post-fabrication can add thousands in rework costs.
02
🖨️

Prototyping Concept Parts

Even the most refined CAD model is theoretical until physically validated. Prototype concept parts via 3D printing or CNC machining before committing to full tooling. This tactile validation reveals form, fit, and ergonomic gaps that digital models miss.

Prototypes expose real-world gaps early — when design iterations are still cheap. Use feedback from physical samples to refine CAD files before mold fabrication begins.

💡SLA or FDM 3D prints are often sufficient for geometry checks. CNC-machined prototypes from engineering plastics give a more accurate feel for final part quality.
03
🔧

Designing Injection Molds

With verified part geometry, engineers design the precision-machined steel tools that will form finished plastic parts. Critical details — surface finish, cavity count, cooling channel layout, ejector pin placement, and injection gate type — are all mapped at this stage.

World-class mold design minimizes cycle times and material waste while maximizing production quality and tool longevity. The goal is efficiency across the mold’s full production life, often hundreds of thousands of shots.

💡Cavity count directly impacts unit cost. Multi-cavity molds (2, 4, 8 cavities) reduce per-part cost but increase upfront tooling investment.
04
📊

Analyze and Verify Tooling

Before any steel is cut, detailed mold flow simulation validates the design. Analysis checks cooling uniformity, fill-time balance, weld-line placement, injection pressure distribution, and potential sink marks — all at zero rework cost.

Everything from injection pressure balancing to texture plate integration is reviewed digitally first. This stage separates experienced mold makers from those who simply react to problems after machining.

💡Ask your mold maker for mold flow simulation reports before approving tooling design. It’s a strong indicator of their engineering capability.
05
⚒️

Fabricate Steel Molds

With an analyzed and approved design, machining begins. EDM and high-precision CNC milling convert virtual CAD data into physical steel tooling. Cavity geometries, ejector pin holes, cooling channels, and runner systems are all machined to tight tolerances.

Depending on part complexity and steel grade, mold fabrication typically takes 4–6 weeks. Rush options are available in 21 days for an additional fee.

💡P20 steel suits most production molds. H13 or S136 (hardened) are recommended for abrasive materials or very high-volume runs (1M+ shots).
06
🔬

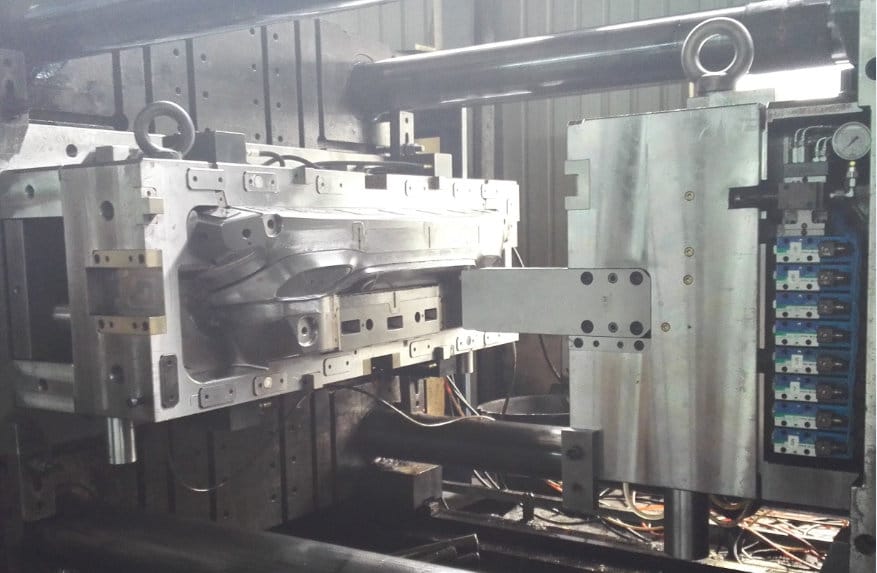

First Article Sampling (T1)

Out of the machining center, the mold produces its first “T1” first article sample. Critical dimensions, surface finish, fill ratio, weld-line strength, warpage, and sink marks are all evaluated by hand or under a CMM (coordinate measuring machine).

T1 samples reveal details invisible in simulation. Sampling typically takes 1–2 weeks after tool completion. Client review and approval begins at this stage before any production commitment.

💡Document all T1 dimensions against your engineering drawings. Any deviations should be logged in a formal First Article Inspection Report (FAIR) for traceability.
07
🎛️

Optimize and Texture Molds

First shot samples rarely meet all specs out-of-the-box — this is expected and normal. Cooling layouts, vent positions, gate sizes, and runner balance are fine-tuned based on T1 feedback to stabilize fill, cycle time, and part quality.

Custom texturing procedures (matte, grain, gloss, leather-effect) are developed at this stage for the desired surface aesthetic.

💡SPI surface finish standards (A1–D3) provide a clear, universal language for specifying surface texture. Use them in your engineering drawings to avoid ambiguity.
08
🏭

Mass Production

Fully optimized and approved molds mark the transition from sampling to production. Parts are molded to T1-approved specifications with integrated quality control at defined inspection intervals.

For very high-volume or sensitive applications, exporting molds for in-house production is an option — preserving tooling security and giving direct production control. Define your production plan and volume forecast upfront.

💡Volume forecast affects scheduling, material procurement, and shipping method — all of which impact total landed cost.
09
📅

Project Timelines

Planning realistic timelines prevents missed launches and supply chain disruptions. Use the detailed timeline reference below as a planning baseline. Complexity, material, and order quantity all influence actual lead times — always confirm specific schedules with your factory before committing to launch dates.

💡Always build in a buffer of 1–2 weeks for T1 revision rounds. Very few complex molds clear T1 in a single shot.
10
🤝

Communication & Alignment

Transforming concept CADs into shippable products depends on stakeholder alignment at every stage. Over-communicate design intent before tooling commitment. Define acceptance criteria for T1 sign-off, establish payment milestones, and align on production schedules early.

With open communication, expert guidance, and cross-functional commitment, injection molding projects run on time and on budget. Ambiguity is the root cause of most costly delays.

💡Assign a single point of contact on both sides. Misrouted communication between engineering, purchasing, and the factory is a common source of avoidable delay.
Timeline Reference

Use these benchmarks for project planning. All timelines are approximate and subject to part complexity and order volume.

PhaseStandardRushNotes
CAD Finalization & DFM Review1–2 wksClient-driven; must be complete before deposit
Mold Fabrication5–6 wks21 daysStarts after deposit & approved 3D files
T1 First Article Sample1–2 wksComplex parts may require additional time
Mold Optimization (if needed)1–2 wksDepends on scope of required changes
Mass Production (10,000 units)~2 wksVaries with material, complexity & quantity
Air Freight (samples / small qty)2–5 daysDHL / FedEx / UPS / TNT recommended
Ocean Freight20–45 daysDestination-dependent; FOB China port
Shipping Options

We support all major freight methods. If you have a designated forwarder, we can ship on your existing accounts.

✈️

Air Freight

Best for samples and urgent small-quantity shipments. DHL, FedEx, UPS, and TNT all service China-origin routes efficiently.

2–5 days delivery
🚢

Ocean Freight

Cost-effective for bulk production shipments. FOB China port terms. Not recommended for international courier consolidation.

20–45 days delivery
📦

Your Freight Forwarder

We can ship on your existing carrier accounts for an additional handling fee — keeping shipments under your preferred terms and rates.

Account-based rates
🛃

Customs Clearance

Clearance timelines vary by destination country. Consult your local freight forwarder for accurate import timeline estimates before planning.

Varies by country
Frequently Asked Questions

Common questions from clients before starting a project.

Mold tooling fees are generally non-refundable as they cover steel material, machining labor, and engineering time. However, the mold itself remains your property and can be shipped to your facility or retained at our factory for ongoing production runs. Always clarify mold ownership terms in your contract before placing a deposit.
T1 revisions are a normal part of the process. We work through a structured optimization cycle — adjusting gate locations, cooling, venting, or other parameters — until parts meet your approved drawings. Minor modifications are typically included; major design changes after tooling starts may incur additional fees.
Yes, in most cases. We can use customer-supplied resin or source specified materials through our supply chain. If you have existing supplier relationships, provide us with the material data sheet (MDS) and we’ll ensure compatibility with your mold design and processing parameters.
We accept STEP (.stp), IGES (.igs), SolidWorks (.sldprt), and most common 3D CAD formats. STEP files are preferred for their universal compatibility. Please also include 2D engineering drawings (PDF) with critical tolerances and GD&T callouts where applicable.
Standard payment terms are typically 50% deposit to start tooling, with the remaining 50% due before shipment of the approved mold or production parts. For ongoing production orders, net terms may be available based on relationship history. All terms are agreed upon in writing before project kick-off.
