Pipe Fitting Injection Mold Manufacturer in China – Custom Tooling for Complex Internal Geometries
Topworks specializes in custom plastic injection molds for pipe fittings, including elbows, tees, sockets, threaded connectors, reducers and sanitary fittings. We engineer tooling with chain-core, arc-core, collapsible-core and hydraulic core-pulling mechanisms to handle demanding internal geometries and demolding requirements. Our engineering experience covers PP, PPH, PVC, PPR, PE, ABS and PPSU applications, from initial DFM and mold design to T1 sampling and production support.
- Elbows, tees, threaded connectors and sanitary fittings
- Chain-core, arc-core and collapsible-core mechanisms
- PP, PPH, PVC, PPR, PE, ABS and PPSU materials
- DFM, mold manufacturing, T1 sampling and production support
Advanced Core-Pulling Mechanisms for Pipe Fitting Injection Molds
Pipe fitting injection molds are often more complicated than conventional two-plate molds. Internal threads, curved passages, deep sockets and undercuts can prevent a molded fitting from being released using a simple straight ejection system. The core-pulling mechanism therefore becomes one of the most important parts of the mold design.
During mold development, our engineers evaluate the internal geometry of the fitting, core withdrawal direction, available mold opening stroke, required clearance and ejection sequence. The objective is to release the part without damaging threads, deforming sealing surfaces or creating unnecessary mechanical complexity.
Depending on the product structure, different solutions may be considered, including chain-core systems, arc-core systems, collapsible cores and hydraulic core-pulling arrangements.
1. Chain Core System
Chain-core mechanisms are suitable for selected pipe fittings with long or multi-segment internal passages. Multiple internal core elements can be connected and withdrawn in a controlled sequence, allowing complex internal geometry to be released during mold opening.
The design must consider the order in which individual core sections move, the available withdrawal distance and the clearance between adjacent core components.
Important engineering considerations include:
- Core withdrawal sequence and timing
- Available mold opening stroke
- Chain strength and mechanical guidance
- Clearance between internal core segments
- Wear resistance and maintenance access
Incorrect sequencing can cause interference between core components or prevent the fitting from being released properly. We therefore review the complete movement sequence during mold design.
2. Arc Core System
Arc-core mechanisms are used for selected curved internal geometries, particularly pipe elbows and fittings with non-straight internal passages.
Unlike a conventional straight core, an arc core follows a defined curved withdrawal path. This allows the internal shape of the fitting to be released without requiring an impractical straight extraction direction.
Important design considerations include:
- Curvature and radius of the internal passage
- Arc-core travel distance and movement path
- Guide surfaces and mechanical support
- Clearance during core withdrawal
- Potential interference with surrounding mold components
Core movement must be synchronized with mold opening and ejection. The final structure is determined by the actual fitting geometry rather than by a standard mechanism alone.

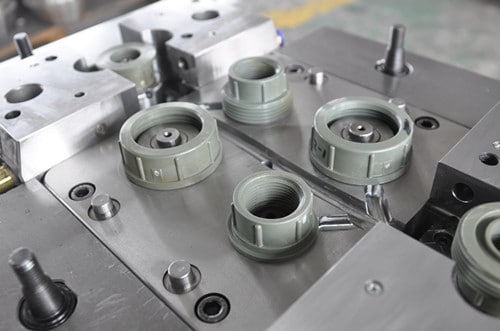

3. Collapsible Core System
Collapsible cores are commonly considered for suitable internal threads and undercut geometries. The core consists of movable segments that contract inward to create sufficient clearance for part release.
After the molded fitting is released, the core returns to its expanded molding position for the next injection cycle.
Important design considerations include:
- Internal thread profile and pitch
- Segment contraction distance
- Core expansion and alignment
- Material shrinkage and release clearance
- Segment wear and long-term durability
For threaded connectors, the core design must protect the thread profile and avoid damage during demolding. The choice between a collapsible core and a mechanical unscrewing system depends on thread geometry, production requirements and the available mold space.
Custom Injection Molds for Different Types of Plastic Pipe Fittings
Pipe fitting products vary considerably in geometry and application. A simple straight connector may require conventional core construction, while a threaded elbow or sanitary fitting may need a more sophisticated internal release system. Our mold design approach starts with the actual part drawing and its functional requirements.
We develop tooling for a range of pipe fitting applications, considering connection dimensions, sealing interfaces, wall thickness, internal passages and the production resin.
1. PP & PPH Pipe Fittings
Polypropylene and polypropylene homopolymer are used in drainage, industrial piping and selected sanitary applications. Typical products include belling fittings, connectors, elbows and drainage components.
For these applications, mold design must account for material shrinkage, wall thickness distribution and the geometry of socket connections.
Our engineering review considers:
- Socket dimensions and fitting concentricity
- Internal passage geometry
- Wall thickness and material distribution
- Cooling balance and shrinkage behavior
- Gate position and filling performance
For larger fittings, uneven cooling and nonuniform wall sections can contribute to dimensional variation. Appropriate cooling-channel layouts and process validation help improve production consistency.
2. PVC Pipe Fittings
PVC fittings are widely used in drainage systems, gutter connections and other piping applications. Common products include elbows, tees, reducers, sockets and drainage connectors.
PVC compounds have specific thermal processing requirements. The mold and processing arrangement must therefore be evaluated together with the actual resin formulation.
Key tooling considerations include:
- Venting and prevention of trapped air
- Gate location and flow balance
- Cooling-channel arrangement
- Parting-line flash control
- Dimensional stability of connection areas
For fittings with sealing or socket interfaces, dimensional inspection should focus on the features that directly affect assembly and connection performance.
3. PPR & PE Pipe Fittings
PPR and PE fittings are used in water distribution, plumbing and industrial piping systems. Typical products include straight connectors, elbows, tees, reducers and socket fittings.
These parts often require consistent connection dimensions and reliable assembly interfaces. The mold design should consider the relationship between wall thickness, shrinkage and internal core geometry.
Important design points include:
- Connection and socket dimensions
- Internal passage smoothness
- Concentricity and wall thickness
- Core extraction and demolding clearance
- Cooling uniformity and cycle stability
For PE corrugated pipe components, product geometry and the selected manufacturing process need to be reviewed separately because corrugated structures can require different tooling and forming arrangements.
4. ABS & PPSU Pipe Fittings
ABS and PPSU are used in selected specialty and high-performance fitting applications. Their processing requirements differ from those of conventional PP and PE materials.
ABS fittings may require attention to cosmetic appearance, dimensional accuracy and assembly interfaces. PPSU applications require careful consideration of material processing temperature, mold thermal stability and the specified end-use environment.
Our engineering review considers:
- Material grade and processing characteristics
- Mold steel and thermal requirements
- Internal thread and connection geometry
- Cooling and dimensional consistency
- Surface finish and part appearance
The resin specification and application requirements should be confirmed before finalizing the mold structure and processing window.
Why Choose Topworks for Pipe Fitting Injection Mold Manufacturing?
Topworks has been in the plastic mold business since 2006. Our pipe-fitting tooling experience spans more than 13 years, covering different fitting geometries, internal core-pulling systems and material applications.
We understand that the purchase price of a mold is only one part of the total project cost. For pipe fitting manufacturers, the more important questions often concern cycle time, demolding reliability, thread quality, dimensional consistency, maintenance requirements and the ability to maintain stable production over the life of the tool.
Our engineering approach focuses on these practical production requirements.
DFM Review Before Mold Manufacturing
Before starting mold construction, we review the supplied 3D model and 2D drawings to identify potential manufacturing and molding issues.
For pipe fittings, particular attention is given to internal passages, wall thickness, thread geometry, undercuts, sealing interfaces and the relationship between the parting line and core-pulling direction.
During DFM, we can discuss:
- Whether the internal geometry can be released with a straight core
- Where chain-core, arc-core or collapsible-core solutions may be appropriate
- Whether the product requires mechanical unscrewing or hydraulic movement
- Potential interference between core components and mold inserts
- Possible changes to improve manufacturability and demolding
- Critical dimensions that need inspection during sampling
Gate Design and Filling Considerations
Gate location influences how molten plastic enters the cavity and fills the fitting. For pipe fittings with different wall sections or complex internal structures, gate selection should be evaluated against filling balance, weld-line location, pressure requirements and product appearance.
Depending on the product, possible gating approaches include direct gating, side gating, tunnel gating and hot-runner systems. The appropriate solution depends on the part size, material, cavity arrangement and production volume.
For fittings used in pressure-bearing systems, the location of weld lines and potential weak areas should receive particular attention during design validation.
Cooling System and Cycle Time
Pipe fittings can have thick socket areas, relatively thin connecting walls and complex geometries. Uneven cooling can result in differential shrinkage, dimensional variation and longer production cycles.
We consider cooling-channel placement around the cavity and core, especially near thicker sections and critical connection features.
The objective is not simply to reduce cooling time. A useful cooling design must balance cycle time, part dimensional stability, demolding performance and the practical space available inside the mold.
Mold Steel and Mechanical Durability
Core-pulling systems contain moving components that operate repeatedly during production. Core surfaces, guide components, sliding interfaces and locking structures must be designed to withstand the intended operating conditions.
Mold steel selection depends on the resin, expected production volume, wear characteristics, corrosion requirements and surface finish. Suitable pre-hardened or hardened tool steels can be selected according to the application rather than using one steel grade for every project.
For molds with collapsible cores or complicated internal mechanisms, accessibility for maintenance and replacement of wear components should also be considered during mold design.
From Mold Design to Production Support
Topworks can support the project through the following stages:
- DFM review: Review part geometry, material, undercuts and critical dimensions.
- Mold design: Develop the mold structure, core-pulling mechanism, cooling and gating arrangement.
- Tool manufacturing: Machine and assemble the mold components, including cavity, core and moving mechanisms.
- T0 / T1 sampling: Evaluate the first molded parts and identify dimensional or molding issues.
- Correction and validation: Review necessary tool adjustments and process parameters before approval.
- Production support: Support repeatable molding, inspection, packaging and shipment according to project requirements.
For projects requiring documented quality control, inspection requirements can be agreed around critical-to-quality dimensions, first-article inspection and other customer-specific deliverables.
Need a Custom Pipe Fitting Injection Mold?
Send us your fitting drawings, 3D CAD files, resin grade and expected annual production volume. Our engineering team can review the product structure, identify internal undercuts and recommend an appropriate core-pulling solution before preparing a tooling quotation.
We welcome projects involving standard pipe connectors as well as more complicated fittings with internal threads, curved passages and multiple undercuts.
- Elbows, tees, reducers, sockets and threaded fittings
- Chain-core, arc-core, collapsible-core and hydraulic systems
- PP, PPH, PVC, PPR, PE, ABS and PPSU applications
- DFM, tooling, sampling and production support
Pipe Fitting Injection Mold FAQ
What types of pipe fittings can Topworks manufacture molds for?
Topworks manufactures custom injection molds for elbows, tees, threaded connectors, reducers, sockets, sanitary fittings and other plastic pipe components. Our material applications include PP, PPH, PVC, PPR, PE, ABS and PPSU. Mold structure and core-pulling solutions are determined by the actual part geometry, material grade, production volume and dimensional requirements.
For complex fittings, we review the internal passages, thread geometry, undercuts and connection interfaces before selecting the mold structure. This helps establish whether a conventional core, collapsible core, arc core or chain-core arrangement is appropriate.
What is a core-pulling mechanism in a pipe fitting injection mold?
A core-pulling mechanism is a mold mechanism used to withdraw internal tooling components so that a molded part with internal features can be released. It is particularly important for pipe fittings with internal threads, curved passages, sockets and undercuts.
Depending on the geometry, a mold may use chain-core, arc-core, collapsible-core or hydraulic core-pulling arrangements. The mechanism must be designed around the available mold opening stroke, movement sequence, release clearance and expected production conditions.
What is a collapsible core used for in pipe fitting molds?
A collapsible core is used for suitable internal threads and undercut geometries that cannot be released directly using a conventional straight core. Its movable segments contract inward to create clearance during demolding and return to their expanded molding position for the next injection cycle.
Important design considerations include thread profile, segment movement, core alignment, shrinkage allowance, surface finish and wear resistance. For some thread designs, a mechanical unscrewing mechanism may be a more suitable alternative. The final solution depends on the product geometry and production requirements.
How experienced is Topworks in pipe fitting injection molds?
Topworks has been in the plastic mold business since 2006 and has more than 13 years of specialized pipe-fitting tooling experience. Our experience includes molds with different internal core-pulling structures, including chain-core, arc-core and collapsible-core solutions.
We focus on practical mold engineering, including DFM, core movement, cooling, gating, mold manufacturing and sampling. The objective is to deliver tooling that meets the agreed part specifications and production requirements.
Which plastic materials can be used for pipe fitting injection molds?
Typical applications include PP, PPH, PVC, PPR, PE, ABS and PPSU. Each resin has different flow characteristics, shrinkage behavior and processing requirements.
PP and PPH are commonly used in drainage and industrial piping applications. PVC is used for various drainage and connection components. PPR and PE are used in water distribution and plumbing fittings. ABS and PPSU serve selected specialty applications.
Material grade, additives and operating conditions should be confirmed before finalizing mold steel, cooling, gating and processing recommendations.
