Introduction
Quick Answer
A PET preform mould is a precision injection tool that shapes molten PET into threaded, test-tube-shaped preforms — the intermediate step before stretch-blow molding turns them into bottles. Cavity count (4–144) sets output per cycle, steel grade (S136, NAK80, H13) sets service life and surface quality, and cooling design — which consumes 50–70% of the total cycle — decides whether the mould is fast or just expensive. Quality moulds are rated for 1 million+ cycles; premium tools exceed 2.5 million.
- Process: Two-step production — injection molds the preform, stretch-blow molding forms the final bottle in a separate tool
- Cavity count: 4–144, commonly 4/8/16/32/48/72/96/128/144 — matched to demand, not maximized
- Gate style: Valve-gate (clean, no stringing, premium) vs. open-gate (cheaper, more gate-mark risk)
- Cavity/core steel: S136 (48–52 HRC) — the standard for mirror polish and PET-contact corrosion resistance
- Cooling target: Inlet-to-outlet water ΔT of 2–4°C; above 5°C signals a poorly balanced circuit
- Tolerance: ±0.05–0.25 mm general cavity; ±0.01–0.05 mm on neck-ring and core-to-cavity fits
- Neck finish: PCO1881 / PCO1810 (water, CSD) plus 28/38/48 mm ranges for other closures — must match cap and filler spec
- Lifespan: 1 million+ cycles standard; 2.5 million+ on premium builds with proper maintenance
If your brand sells anything in a plastic bottle, the question of what is PET preform mould eventually lands on your desk, even if you’re a marketer rather than an engineer. Packaging tooling decisions shape unit economics, sustainability claims, time-to-shelf, and the visual identity of your product. This guide explains the concept in plain language, connects it to the wider PET supply chain, and shows U.S. marketers how preform tooling decisions ripple into procurement, branding, and ESG reporting.
You’ll learn what a PET preform mould is, how it works, what it costs, how to evaluate suppliers, and which questions to bring into cross-functional meetings with operations and packaging engineers.
What Is PET Preform?
A PET preform mould is a multi-cavity steel injection mold that forms molten PET resin into a small, thick-walled, test-tube-shaped intermediate part called a preform, which is later stretched and blown into a finished bottle. The mould sits inside an injection molding machine and produces dozens to hundreds of preforms in a single shot, typically every 8 to 14 seconds.
The preform itself already contains the bottle’s finished neck and threads. Only the body is reshaped during downstream blow molding. The mould therefore controls neck dimensions, weight tolerance, and material distribution — three variables that directly affect bottle quality.
Key facts about PET preform moulds:
- They are typically built from hardened tool steels such as 420 stainless or S136, designed for 1 to 5 million cycles.
- Cavity counts commonly range from 2 to 144, with 48- and 96-cavity tools dominating high-volume beverage lines.
- They produce preforms ranging from roughly 8 grams (small water bottles) to 60+ grams (large juice or detergent bottles).
- They require integrated hot runners, cooling channels, and ejection systems to hit beverage-industry cycle times.
- They are usually paired with separate stretch blow molding (SBM) tools downstream.
How a PET Preform Mould Works
A PET preform mould works by injecting molten PET into shaped cavities, cooling it rapidly, and ejecting solid preforms ready for blow molding. The process happens inside an injection molding machine fitted with a PET-specific screw and hot runner system.
Here is the simplified workflow:
- Resin drying. PET pellets are dried to under 50 ppm moisture to prevent hydrolysis.
- Plasticizing. A reciprocating screw melts the resin to roughly 270–290 °C.
- Injection. Melt is pushed through a hot runner manifold into each cavity.
- Cooling. Water-cooled cores solidify the preform in seconds.
- Ejection. Preforms drop or are robotically transferred to a post-mold cooling station.
- Quality check. Inline cameras verify weight, color, and clarity.
The preform later goes to a stretch blow molder, where it’s reheated and inflated into the final bottle. Marketers should know this two-step process exists because it explains why packaging changes (a new bottle silhouette, for example) sometimes require new blow molds but the same preform mould — and vice versa.
Why PET Preform Moulds Matter to Marketers
PET preform moulds matter to marketers because they control three commercial levers: cost per bottle, shelf appearance, and sustainability narrative. A poorly chosen mould inflates unit costs, increases scrap, and can lock a brand into outdated weights or finishes that look heavy or wasteful next to lightweighted competitors.
Specifically, preform tooling influences:
- COGS through cycle time, cavity count, and resin yield.
- Sustainability claims through preform weight, post-consumer recycled (rPCR) compatibility, and tethered-cap readiness.
- Brand consistency through neck finish standardization across SKUs.
- Speed-to-market since new tooling can take 16–28 weeks to commission.
PET Preform Mould vs. Blow Mould: A Comparison
PET preform moulds and blow moulds are two different tools used in two different stages of bottle production. Confusing them is the most common mistake marketers make in supplier conversations.
| Attribute | PET Preform Mould | PET Blow Mould |
|---|---|---|
| Process stage | Injection molding (Stage 1) | Stretch blow molding (Stage 2) |
| Output | Test-tube preform with finished neck | Final bottle shape |
| Material state | Molten resin | Reheated solid preform |
| Typical material | Hardened stainless steel | Aluminum alloy (e.g., 7075) |
| Typical cavities | 2–144 | 1–24 |
| Lifespan | 1–5M cycles | 3–10M cycles |
| Lead time | 16–28 weeks | 6–12 weeks |
| Changes when | Neck finish or weight changes | Body silhouette changes |
The practical takeaway: a marketing-driven redesign of bottle shape usually only requires a new blow mould. A change in cap, neck, or weight triggers a far more expensive preform mould project.

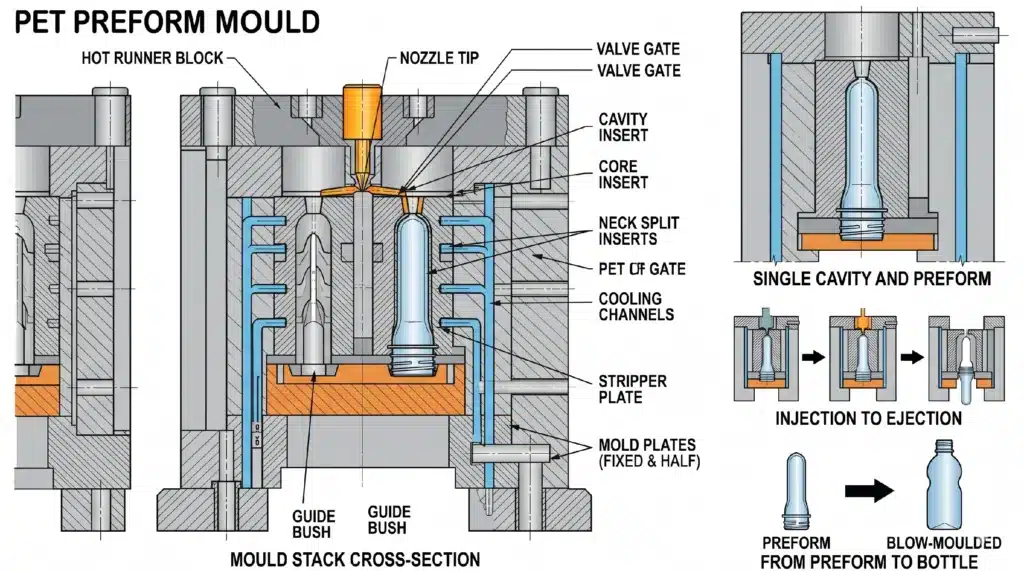

Core Components of a PET Preform Mould
A PET preform mould is built from several precision subsystems that work together. Understanding the parts helps marketers ask sharper questions during supplier reviews.
- Cavity plate. Defines the outer surface of the preform.
- Core (mandrel). Defines the inner surface and helps cool the part.
- Neck rings. Form the threaded finish and split open for ejection.
- Hot runner system. Keeps resin molten and balanced across cavities.
- Cooling circuits. Conformal channels that control cycle time.
- Ejection robot interface (EOAT). Transfers preforms to post-mold cooling.
- Gate inserts. Wear parts that shape the bottom dimple of the preform.
Hot runners and neck rings are the two areas where premium tool builders most clearly differentiate themselves.
How to Choose a PET Preform Mould Supplier
Choosing a PET preform mould supplier comes down to matching cavity count, cycle time, and serviceability to your annual volume forecast. The right supplier delivers a tool that hits target cycle time on day one and is supported with spare parts for a decade.
Follow these seven steps:
- Forecast annual demand in preforms per year, not bottles per year.
- Define neck finish standards (PCO 1810, PCO 1881, 26/22, 29/25, etc.).
- Set target preform weight with sustainability and rigidity in mind.
- Specify cavity count based on your injection machine tonnage and platen size.
- Request cycle time guarantees in writing, tied to a specific resin grade.
- Audit the supplier’s reference list for similar SKUs in similar markets.
- Negotiate spare parts packages — at minimum, one full set of neck rings and gate inserts.
Globally recognized PET preform mould builders include Husky Technologies (Canada), MHT Mold & Hotrunner Technology (Germany), Otto Hofstetter (Switzerland), and SIPA (Italy). U.S. buyers often work with these OEMs through regional service centers.
How Much Does a PET Preform Mould Cost?
A PET preform mould costs anywhere from roughly $80,000 for a small 8-cavity tool to over $1.5 million for a 144-cavity high-output system. Pricing varies by cavity count, hot runner brand, steel grade, and aftermarket support.
| Cavity Count | Indicative Price Range (USD) | Typical Use |
|---|---|---|
| 8–16 | $80K–$200K | Specialty / craft beverage |
| 32–48 | $250K–$550K | Mid-volume CSD, juice |
| 72–96 | $600K–$1.0M | Major water and CSD lines |
| 128–144 | $1.0M–$1.5M+ | High-output bottled water |
Evidence varies by source and should be verified with current quotations, since steel prices, freight, and currency shifts move these ranges quarterly.
PET Preform Mould and Sustainability
PET preform moulds increasingly drive sustainability outcomes because they govern preform weight and recycled-content compatibility. Lightweighting a preform by even one gram can save hundreds of tons of resin per year on a high-volume SKU.
Three sustainability levers tied directly to the mould:
- Lightweighting. Modern tools produce preforms 20–40% lighter than 2005-era equivalents, depending on bottle size.
- rPET compatibility. Hot runners and gates may need adjustments for 50–100% recycled content, since rPET has different melt behavior.
- Tethered caps. EU 2024 tethered-cap rules influence neck finish design globally; even U.S. exporters must consider compatibility.
According to the U.S. Environmental Protection Agency, PET bottles have one of the highest recycling rates among plastic packaging in the United States, making preform mould design a meaningful lever in circular packaging strategies. Verify current figures at epa.gov.
Common Mistakes Marketers Make With PET Preform Moulds
Marketers most often go wrong by treating preform tooling as a purely operational issue and discovering too late that it constrains brand decisions. The result is rushed redesigns and missed launches.
Avoid these pitfalls:
- Approving a bottle redesign before checking neck compatibility with existing preform tooling.
- Assuming any PET supplier can run your preforms — neck finish standards must match.
- Ignoring cycle time guarantees in supplier contracts.
- Underestimating lead times for new tooling (often 5–7 months).
- Skipping the spare parts conversation, which causes downtime two years later.
- Confusing preform mould lead times with blow mould lead times in launch plans.
- Forgetting rPET qualification trials when committing to recycled-content marketing claims.
Key Takeaways
- A PET preform mould is a multi-cavity injection tool that converts molten PET resin into preforms used for blow-molded bottles.
- The preform mould defines the bottle’s neck, threads, and weight, while a separate blow mould defines the body shape.
- Cavity counts typically range from 2 to 144, with cycle times of 8–14 seconds for high-volume lines.
- Tooling investments range from roughly $10,000 to over $0.5 million depending on cavity count and specifications.
- Lead times of 8–16 weeks make preform mould planning a strategic, not tactical, marketing decision.
- Lightweighting and PET compatibility are the two sustainability levers most directly controlled by the mould.
- U.S. marketers should align packaging redesigns with preform tooling cycles to avoid launch delays and surprise costs.
FAQs
What is a PET preform mould used for?
A PET preform mould is used to injection-mold plastic preforms that are later blown into finished bottles. It produces the test-tube-shaped intermediate part that already contains the bottle’s neck and threads. Industries using it include bottled water, carbonated soft drinks, juices, edible oils, and personal care.
How long does a PET preform mould last?
A well-maintained PET preform mould lasts 1 to 5 million cycles, which can mean 5 to 10 years on a high-volume line. Lifespan depends on steel grade, resin abrasiveness (especially with rPET), and maintenance frequency. Neck rings and gate inserts are wear parts replaced more often.
How many cavities does a typical PET preform mould have?
A typical PET preform mould has between 32 and 96 cavities for mainstream beverage applications. Specialty or craft producers may use 8- or 16-cavity tools, while major bottled water producers use 128- or 144-cavity systems. The right number depends on machine tonnage and annual demand.
What is the difference between a PET preform and a PET bottle?
A PET preform is the small, thick-walled, test-tube-shaped intermediate part that has not yet been blown into its final shape. A PET bottle is the finished, blown product on the shelf. The preform’s neck is identical to the bottle’s neck because that section is not stretched during blow molding.
Can PET preform moulds run 100% recycled PET?
PET preform moulds can run 100% recycled PET, but often require hot runner tuning and gate adjustments. Recycled PET has different melt viscosity and may contain contaminants that affect cycle time and clarity. Many brands run blends of virgin and rPET to balance performance with sustainability claims.
Who are the leading PET preform mould manufacturers?
Leading PET preform mould manufacturers include Husky Technologies, MHT Mold & Hotrunner Technology, Otto Hofstetter, and SIPA. These OEMs serve global beverage and packaging brands and maintain service operations across North America. Several Asian builders also compete on price for mid-volume tools.
How long does it take to get a new PET preform mould?
A new PET preform mould typically takes 16 to 28 weeks from order to first production sample. Lead time depends on cavity count, steel availability, and supplier backlog. U.S. marketers should integrate this timeline into product launch plans well before creative briefs are finalized.
Does changing my bottle design require a new PET preform mould?
Changing your bottle design only requires a new PET preform mould if the neck finish, weight, or threading changes. If only the body shape changes, a new blow mould is usually sufficient. Confirming this distinction early can save hundreds of thousands of dollars and months of lead time.
